52-Port Layer 2 Managed Industrial Ethernet SwitchHF-IES-4000-52P48G48SF4XGdescriptionHF-IES-4000-52P48G48SF4XG is a managed redundant ring Ethernet switch with 4x10G ports and 48 Gigabit combo ports and 1 Gigabit manage port with complete support of Ethernet redundancy protocol, HF-Ring (recovery time≤ 15ms). It’s plug and play, designed in wide operating temperaturefrom -40 ºC to 85 ºC, with performance of dust/salt fog proof, make it completely suitable for harsh environments.
-
-
6-Port 100M Layer 2 Managed Industrial Ethernet SwitchHF-IES-2006M系列descriptionHF-IES-2006M series is a low-power consumption, 6-port managed switch. It’s plug and play, support VLAN etc.adapt wide working temperature -40℃～+85
℃, relative humidity 5~95%(no condensing), equipped with performance of dust/salt fog proof, make it completely suitable for harsh environment.
-
-
24+4G Managed Industrial Ethernet SwitchHF-IES-2228M serialdescriptionHF-IES-2228M series is a 28-port managed switch. Support 4 Gigabit combo ports and 3 100M optional slot(provide max up to 24 100M interfaces). It’s plug and play, support HF-Ring protocol, self healing time≤15ms VLAN etc. Adapt wide working temperature -40℃~+85℃, relative humidity 5~95%(no condensing), Equipped with performance of dust/salt fog proof, make it completely suitable for harsh environment.
-
-
6-Port 1000M Layer 2 Managed Industrial Ethernet SwitchHF-IES-2506M系列descriptionHF-IES-2506M series is a 6-port Gigabit managed switch. Offer max up to 6 Gigabit port, It’s plug and play, support RSTP protocol(self-healing ≤15ms), VLAN etc. Adapt wide industrial grade design, 40℃ ~+85℃, relative humidity 5~95%(no condensation), with performance of dust/salt.make it completely suitable for harsh environments.
-
-
28-Port 1000M Layer 2 Managed Industrial Ethernet SwitchHF-IES-2528M seriesdescriptionHF-IES-2528M series is 28-port Gigabit managed switch. It’s plug and play, support HF-Ring protocol(recovery time ≤15ms), VLAN etc. Adapt wide industrial grade design, 40℃ ~+85℃, relative humidity 5~95%(no condensation), with performance of dust/salt, make it completely suitable for harsh environments
-
4 10G ports, 48 Gigabit combo ports, 1 Gigabit manage port
HF-Ring (recovery time≤15ms), RSTP/STP, and MSTP for network redundancy
Support IPv4/IPv6
Support web interface management, CLI-Console/Telnet,SNMPv1/v2/v3, RMON/System syslog
Support IEEE802.1Q VLAN/MAC based VLAN/Protocol based VLAN/ IP subnet basedVLAN/QinQ/GVRP/MVR
Support Port-based IEEE802.1X/Single and multiple IEEE802.1X/ MAC-based authentication/VLAN Assignment/ IP source guard/RADIUS/ TACACS+/ACL/SSHv2/HTTPS
Support ITU-T G.8032 Ethernet Ring Protection
Support IGMP v1/v2/v3 Snooping, MLD v1/v2 Snooping
Support DHCP Server/Client/Relay/snooping
Support DNS client/proxy
Support LACP/Link Aggregation Static
Support port mirroring, port speed limit, broadcast storm control
Working environment -40℃～+85℃
Working in the harsh environment
EMC industrial level 4
IP40 protection, metal housing
Physical Port | ||||
Gigabit combo Port | 48 | |||
10G Port | 4 | |||
Gigabit manage Port | 1 | |||
Transmission Distance | ||||
Twisted pair | 100m(Adopt standard CAT5, CAT5e) | |||
Multi-mode | 1310nm 5KM(100M), 850nm 550M(1000M) | |||
Single mode | 1310nm 40KM/60KM(100M) 1550nm 60KM/80KM(100M) 1310nm 10KM/40KM(1000M) 1550nm 60KM/80KM(1000M) | |||
Technology | ||||
Standards | IEEE802.3i/802.3u/802.3ab/802.3z/802.3x/802.3ad/802.1p/ 802.1q/802.1d/802.1w/802.1s/802.1ad/802.3az/802.1x/ 802.1ab | |||
Protocol | HF-Ring, IGMP v1/v2/v3 Snooping, GVRP, SNMPv1/2/3, MLD v1/v2 Snooping, DHCP Server/Client/Relay/snooping, RMON, HTTPS, Telnet, System syslog, SSHv2, DNS client/proxy, CLI-Console, Q-in-Q, RADIUS, TACACS+, ACL | |||
MIB | MIB-II, Ethernet-Like MIB, Q-BRIDGE MIB, Bridge MIB, RSTP MIB, RMON MIB Group 1, 2, 3, 9 | |||
DDM Function | Tx/Rx Optical Power and Temperature control | |||
Flow Control | IEE802.3x flow control, back pressure flow control | |||
Switch Properties | ||||
Priority Queues | 8 | |||
Maximum No of Available VLANs | 4094 | |||
VLAN ID Range | 1-4094 | |||
MAC Table Size | 32K | |||
Packet Buffer Size | 32Mbit | |||
Packet Forwarding Rate | 132.4Mpps | |||
Switching delay | <5µS | |||
Interfaces | ||||
10G Port | 10G SFP interface | |||
Gigabit combo Port | 10/100/1000Base TX or 100/1000Base-X,SFP interface | |||
Gigabit manage Port | Manage interface | |||
Console Port | RJ45 connector, RS232 TX/RX | |||
Alarm Contact | 2-pin relay output with current carrying capacity of 0.5A@60V | |||
LED indicators | |
Power | Green On - Power on Green Off - Power off |
System Indicator | Green On - The system starts up successfully Green Off -The system doesn’t start up successfully |
10/100/1000Base-T(X) RJ45 Port Indicator | Yellow for port speed: Yellow On -The port works at 1000Mbps. Yellow off -The port works at 10Mbps or 100Mbps. Green for port Link/Act: Green On and Blinking—Port LINK UP, data is transmitted. Green On – No Blinking –Port Link Up Green Off - Port Link down |
1000Base-X Fiber or 10G Port Indicator | Green for port Link/Act: Green On and Blinking—Port Link Up, data is transmitted. Green On—Port Link Up Green Off—Port Link Down |
Power | |
Power backup | Optional redundant dual inputs |
Input Voltage | 220VAC/DC(88~264VAC,120~300VDC), optional 24VDC(10~36VDC), 48VDC(18~72VDC),110VDC(72~154VDC) |
Full Load | 70W |
Overload Current Protection | Yes |
Reverse Polarity Protection | Yes |
Power Connection | 3-Pin terminal block |
Alarm Connection | 3-Pin terminal block |
Environmental | |
Storage Temperature | -40 to 85ºC (-40 to 185℉) |
Operating Temperature | -40 to 85ºC (-40 to 185℉) |
Operating Humidity | 5% to 95% Non-condensing |
Physical Characteristic | |
Enclosure | Metal housing with IP40 Protection |

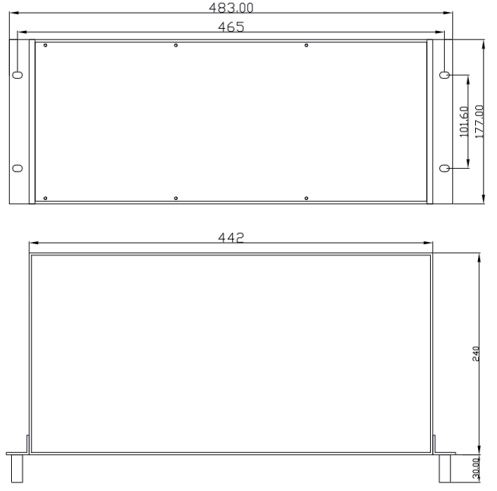

Dimension (W x D x H) | 483×177×244mm |
Weight(kg) | 6.5kg |
Installation | 4U Rack |
Warranty | 5 years |
HF-IES-4000-52P48G48SF4XG
