5 Port Layer 2 Unmanaged Industrial Ethernet SwitchHF-IES-1005系列descriptionHF-IES-1005 series is a 5-port 100M unmanaged layer 2 industrial Ethernet switch, offer max up to 5 ports, which can be configured flexibly. It’s plug and play, adapt wide working temperature -40℃～+85℃, relative humidity 5~95%(no condensing), equipped with performance of dust/salt fog proof, make it completely suitable for harsh environment.
-
-
8 Port Layer 2 Unmanaged Industrial Ethernet SwitchHF-IES-1008系列descriptionHF-IES-1008 series is a 8 100M ports unmanaged layer 2 industrial Ethernet switch, offer max up to 8 ports, which can be configured flexibly. It’s plug and play, adapt wide working temperature -40℃～+85℃, relative humidity 5~95%(no condensing), equipped with performance of dust/salt fog proof, make it completely suitable for harsh environment.
-
-
12 Port Layer 2 Unmanaged Industrial Ethernet SwitchHF-IES-1012系列descriptionHF-IES-1012 is a 12 100M ports unmanaged layer 2 industrial Ethernet switch, offer max up to 12 ports, which can be configured flexibly. It’s plug and play, adapt wide working temperature -40℃～+85℃, relative humidity 5~95%(no condensing), equipped with performance of dust/salt fog proof, make it completely suitable for harsh environment.
-
-
16 Port Layer 2 Unmanaged Industrial Ethernet SwitchHF-IES-1016 seriesdescriptionHF-IES-1016 series is a 16 100M ports unmanaged layer 2 industrial Ethernet switch, offer max up to 16 ports, which can be configured flexibly. It’s plug and play, adapt wide working temperature -40℃～+85℃, relative humidity 5~95%(no condensing), equipped with performance of dust/salt fog proof, make it completely suitable for harsh environment.
-
-
5+1GFX Port Layer 2 Unmanaged Industrial Ethernet SwitchHF-IES-1206 seriesdescriptionHF-IES-1206 is a 6 100M ports unmanaged layer 2 industrial Ethernet switch, offer 1 gigabit optical ports and 5 fast RJ45 port. It’s plug and play, adapt wide working temperature -40℃～+85℃, relative humidity 5~95%(no condensing), equipped with performance of dust/salt fog proof, make it completely suitable for harsh environment.
-
-
8+2G Port Layer 2 Unmanaged Industrial Ethernet SwitchHF-IES-1210（8+2G） seriesdescriptionHF-IES-1210(8+2G) is a 10-port unmanaged layer 2 industrial Ethernet switch, offer max 2 gigabit combo ports and 8 100M interfaces. It’s plug and play, adapt wide working temperature -40℃~+85℃, relative humidity 5~95%(no condensing), equipped with performance of dust/salt fog proof, make it completely suitable for harsh environment.
-
-
16+2G Port Layer 2 Unmanaged Industrial Ethernet SwitchHF-IES-1218 seriesdescriptionHF-IES-1218 series is a 18-port unmanaged layer 2 industrial Ethernet switch, offer 2 gigabit combo ports and 16 100M interfaces. It’s plug and play, adapt wide working temperature -40℃~+85℃, relative humidity 5~95%(no condensing), equipped with performance of dust/salt fog proof, make it completely suitable for harsh environment.
-
-
24+4G Port Layer 2 Unmanaged Industrial Ethernet SwitchHF-IES-1228 seriesdescriptionHF-IES-1228 series is a 28-port unmanaged layer 2 industrial Ethernet switch, offer max up to 4 Gigabit combo ports and 24 100M interfaces. It’s plug and play, adapt wide working temperature -40℃～+85℃, relative humidity 5~95%(no condensing), equipped with performance of dust/salt fog proof, make it completely suitable for harsh environment.
-
-
6 Port 1000M Layer 2 Unmanaged Industrial Ethernet SwitchHF-IES-1506 seriesdescriptionHF-IES-1506 series is a 6-port 1000M unmanaged layer 2 industrial Ethernet switch, offer max up to 6 ports, which can be configured flexibly. It’s plug and play, adapt wide working temperature -40℃～+85℃, relative humidity 5~95%(no condensing), equipped with performance of dust/salt fog proof, make it completely suitable for harsh environment.
-
-
8 Port 1000M Layer 2 Unmanaged Industrial Ethernet SwitchHF-IES-1508 seriesdescriptionHF-IES-1508 series is a 8-port 1000M unmanaged layer 2 industrial Ethernet switch, offer max up to 8 ports, which can be configured flexibly. It’s plug and play, adapt wide working temperature -40℃～+85℃, relative humidity 5~95%(no condensing), equipped with performance of dust/salt fog proof, make it completely suitable for harsh environment.
-
8-port 100M industrial Ethernet switch
Comply with electromagnetic compatibility requirements with industrial 4 grade
10/100M, half/full duplex, MDI/MDI-X auto-negotiation
Green industry series without fan and low-power design
Variety input voltage for optional
Wide operating temperature: -40℃～+85℃
Meet the stringent electrical environment and work requirements
Alarm output of power control
IP40 protection grade,metal shell
DIN Rail/Wall mounting
CE, FCC, RoHS certification
Physical Port | ||
100M-FX | 100Base-FX, single/multi mode, SC/FC | |
100M-TX | 10/100Base-T(X) auto negotiation, RJ45 connector | |
Transmission Distance | ||
Twisted pair | 100m(Adopt standard CAT5, CAT5e) | |
Multi-mode | 1310nm 5KM(100M) | |
Single mode | 1310nm 40KM/60KM(100M) 1550nm 60KM/80KM(100M) | |
Technology | ||
Standards | IEEE802.3/IEEE802.3u/IEEE802.3x/IEEE802.3i | |
Switch Properties | ||
MAC Table Size | 8K | |
Packet Buffer Size | 1Mbit | |
Packet Forwarding Rate | 1.2Mpps | |
Switching delay | <5µS | |
Interfaces | ||
FX Port | 100Base-X, Fiber optical interface | |
RJ45 Port | 10/100Base-T(X) auto negotiation | |
Alarm contact | 2-pin relay output | |
Physical Characteristic | ||
Enclosure | Metal housing with IP40 Protection | |

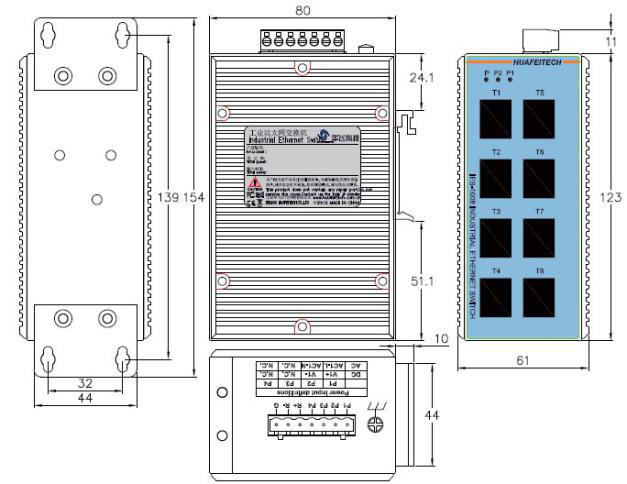

Dimension (W x D x H) | 61×80×123m | |
Weight(kg) | 0.6kg | |
Installation | Din-rail mouting or Wall mouting | |
Warranty | 5 years | |
LED indicators | |
Power | Green On - Power on Green Off - Power off |
10/100Base-T(X) RJ45 Port Indicator | Yellow for port speed: Yellow On —The port works at 100Mbps Yellow Off—The port works at 10Mbps Green for port Link/Act: Green On and Blinking—Port LINK UP, data is transmitted. Green On – No Blinking –Port Link Up Green Off - Port Link down |
100Base-X Fiber optical Port Indicator | Green for port Link/Act: Green On and Blinking—Port Link Up, data is transmitted. Green On—Port Link Up Green Off—Port Link Down |
Power | |
Input Voltage | 220VAC/DC(88~264VAC,120~300VDC), optional 24VDC(10~36VDC), 48VDC(18~72VDC), 110VDC(72~154VDC) |
Full Load | 4.4W |
Overload Current Protection | Yes |
Reverse Polarity Protection | Yes |
Connection | 7-Pin terminal block |
Environmental | |
Storage Temperature | -40 to 85ºC (-40 to 185℉) |
Operating Temperature | -40 to 85ºC (-40 to 185℉) |
Operating Humidity | 5% to 95% Non-condensing |
HF-IES-1008-8TX
HF-IES-1008-1FX-7TX
HF-IES-1008-2FX-6TX
HF-IES-1008-4FX-4TX
HF-IES-1008-6FX-2TX
HF-IES-1008-8FX
