5 Port Layer 2 Unmanaged Industrial Ethernet SwitchHF-IES-1005系列descriptionHF-IES-1005 series is a 5-port 100M unmanaged layer 2 industrial Ethernet switch, offer max up to 5 ports, which can be configured flexibly. It’s plug and play, adapt wide working temperature -40℃～+85℃, relative humidity 5~95%(no condensing), equipped with performance of dust/salt fog proof, make it completely suitable for harsh environment.
-
-
8 Port Layer 2 Unmanaged Industrial Ethernet SwitchHF-IES-1008系列descriptionHF-IES-1008 series is a 8 100M ports unmanaged layer 2 industrial Ethernet switch, offer max up to 8 ports, which can be configured flexibly. It’s plug and play, adapt wide working temperature -40℃～+85℃, relative humidity 5~95%(no condensing), equipped with performance of dust/salt fog proof, make it completely suitable for harsh environment.
-
-
12 Port Layer 2 Unmanaged Industrial Ethernet SwitchHF-IES-1012系列descriptionHF-IES-1012 is a 12 100M ports unmanaged layer 2 industrial Ethernet switch, offer max up to 12 ports, which can be configured flexibly. It’s plug and play, adapt wide working temperature -40℃～+85℃, relative humidity 5~95%(no condensing), equipped with performance of dust/salt fog proof, make it completely suitable for harsh environment.
-
-
16 Port Layer 2 Unmanaged Industrial Ethernet SwitchHF-IES-1016 seriesdescriptionHF-IES-1016 series is a 16 100M ports unmanaged layer 2 industrial Ethernet switch, offer max up to 16 ports, which can be configured flexibly. It’s plug and play, adapt wide working temperature -40℃～+85℃, relative humidity 5~95%(no condensing), equipped with performance of dust/salt fog proof, make it completely suitable for harsh environment.
-
-
5+1GFX Port Layer 2 Unmanaged Industrial Ethernet SwitchHF-IES-1206 seriesdescriptionHF-IES-1206 is a 6 100M ports unmanaged layer 2 industrial Ethernet switch, offer 1 gigabit optical ports and 5 fast RJ45 port. It’s plug and play, adapt wide working temperature -40℃～+85℃, relative humidity 5~95%(no condensing), equipped with performance of dust/salt fog proof, make it completely suitable for harsh environment.
-
-
8+2G Port Layer 2 Unmanaged Industrial Ethernet SwitchHF-IES-1210（8+2G） seriesdescriptionHF-IES-1210(8+2G) is a 10-port unmanaged layer 2 industrial Ethernet switch, offer max 2 gigabit combo ports and 8 100M interfaces. It’s plug and play, adapt wide working temperature -40℃~+85℃, relative humidity 5~95%(no condensing), equipped with performance of dust/salt fog proof, make it completely suitable for harsh environment.
-
-
16+2G Port Layer 2 Unmanaged Industrial Ethernet SwitchHF-IES-1218 seriesdescriptionHF-IES-1218 series is a 18-port unmanaged layer 2 industrial Ethernet switch, offer 2 gigabit combo ports and 16 100M interfaces. It’s plug and play, adapt wide working temperature -40℃~+85℃, relative humidity 5~95%(no condensing), equipped with performance of dust/salt fog proof, make it completely suitable for harsh environment.
-
-
24+4G Port Layer 2 Unmanaged Industrial Ethernet SwitchHF-IES-1228 seriesdescriptionHF-IES-1228 series is a 28-port unmanaged layer 2 industrial Ethernet switch, offer max up to 4 Gigabit combo ports and 24 100M interfaces. It’s plug and play, adapt wide working temperature -40℃～+85℃, relative humidity 5~95%(no condensing), equipped with performance of dust/salt fog proof, make it completely suitable for harsh environment.
-
-
6 Port 1000M Layer 2 Unmanaged Industrial Ethernet SwitchHF-IES-1506 seriesdescriptionHF-IES-1506 series is a 6-port 1000M unmanaged layer 2 industrial Ethernet switch, offer max up to 6 ports, which can be configured flexibly. It’s plug and play, adapt wide working temperature -40℃～+85℃, relative humidity 5~95%(no condensing), equipped with performance of dust/salt fog proof, make it completely suitable for harsh environment.
-
-
8 Port 1000M Layer 2 Unmanaged Industrial Ethernet SwitchHF-IES-1508 seriesdescriptionHF-IES-1508 series is a 8-port 1000M unmanaged layer 2 industrial Ethernet switch, offer max up to 8 ports, which can be configured flexibly. It’s plug and play, adapt wide working temperature -40℃～+85℃, relative humidity 5~95%(no condensing), equipped with performance of dust/salt fog proof, make it completely suitable for harsh environment.
-
8-port 1000M industrial Ethernet switch
Comply with electromagnetic compatibility requirements with industrial 4 grade
10/100/1000M, half/full duplex, MDI/MDI-X auto-negotiation
Green industry series without fan and low-power design
Variety input voltage for optional
Wide operating temperature: -40℃～+85℃
Meet the stringent electrical environment and work requirements
Redundant power input, high reliable
Alarm output of power control
IP40 protection grade,metal shell
DIN Rail/Wall mounting
CE, FCC, RoHS certification
Physical Port | ||
1000M-FX | 1000Base-FX, single/multi mode, SC/FC | |
1000M-TX | 10/100/1000Base-T(X) auto negotiation, RJ45 connector | |
Transmission Distance | ||
Twisted pair | 100m(Adopt standard CAT5, CAT5e) | |
Multi-mode | 850nm 550m(1000M) | |
Single mode | 1310nm 10KM/40KM(1000M) 1550nm 60KM/80KM(1000M) | |
Technology | ||
Standards | IEEE802.3/802.3u/802.3x/802.3i/802.3ab/802.3z | |
Switch Properties | ||
MAC Table Size | 8K | |
Packet Buffer Size | 1Mbit | |
Packet Forwarding Rate | 11.9Mpps | |
Switching delay | <5µS | |
Interfaces | ||
FX Port | 1000Base-X, Fiber optical interface | |
RJ45 Port | 10/100/100Base-T(X) auto negotiation | |
Alarm contact | 2-pin relay output | |
Physical Characteristic | ||
Enclosure | Metal housing with IP40 Protection | |

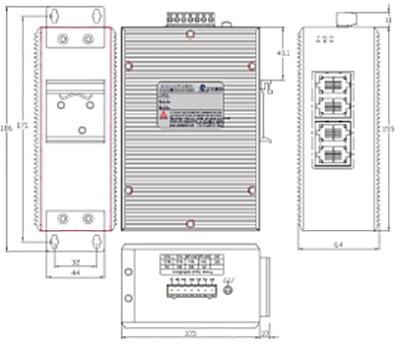

Dimension (W x D x H) | 64×105×155m | |
Weight(kg) | 0.9kg | |
Installation | Din-rail mouting or Wall mouting | |
Warranty | 5 years | |
LED indicators | |
Power | Green On - Power on Green Off - Power off |
10/100/1000Base-T(X) RJ45 Port Indicator | Yellow for port speed: Yellow On —The port works at 1000Mbps Yellow Off—The port works at 100Mbps Green for port Link/Act: Green On and Blinking—Port LINK UP, data is transmitted. Green On – No Blinking –Port Link Up Green Off - Port Link down |
1000Base-X Fiber Optical Port Indicator | Green for port Link/Act: Green On and Blinking—Port Link Up, data is transmitted. Green On—Port Link Up Green Off—Port Link Down |
Power | |
Power backup | Optional redundant dual inputs |
Input Voltage | 220VAC/DC(88~264VAC,120~300VDC), optional 24VDC(10~36VDC), 48VDC(18~72VDC), 110VDC(72~154VDC) |
Full Load | 8.1W |
Overload Current Protection | Yes |
Reverse Polarity Protection | Yes |
Connection | 5-Pin terminal block |
Environmental | |
Storage Temperature | -40 to 85ºC (-40 to 185℉) |
Operating Temperature | -40 to 85ºC (-40 to 185℉) |
Operating Humidity | 5% to 95% Non-condensing |
HF-IES-1508-8GTX
HF-IES-1508-2GFX-6GTX
HF-IES-1508-4GFX-4GTX
