16-Port 100M Layer 3 Managed Industrial Ethernet SwitchHF-IES-3016M seriesdescriptionHF-IES-3016M series are layer3+ managed industrial Ethernet switches specially designed
for industrial application with harsh environment, support RIPv1/v2,OSPFv2 and static
routing, offer 16 100M ports, support HF-Ring protocol, self healing time≤15ms, adapt
fanless design, -40℃～+85℃ wide working emperature, variety power supply for optio
-
-
24+4G Port Layer 3 Managed Industrial Ethernet SwitchHF-IES-3228M seriesdescriptionHF-IES-3228M series are layer 3+ managed industrial Ethernet switches specially designed for industrial application with harsh environment, support RIPv1/v2,OSPFv2 and static routing, offer 4 Gigabit Combo+24 100M ports, support HF-Ring protocol, self healing time≤15ms, adapt fanless design, -40℃～+85℃ wide working temperature, variety power supply for option.
-
-
16-Port 1000M Layer 3 Managed Industrial Ethernet SwitchHF-IES-3516M seriesdescriptionHF-IES-3516M series are layer3+ managed industrial Ethernet switches specially designed for industrial application with harsh environment, support RIPv1/v2,OSPFv2 and static routing, offer 16 1000M ports, support HF-Ring protocol, self healing time≤15ms, adapt fanless design, -40℃～+85℃ wide working emperature, variety power supply for option
-
-
28-Port 1000M Layer 3 Managed Industrial Ethernet SwitchHF-IES-3528M seriesdescriptionHF-IES-3528M series are layer3+ managed industrial Ethernet switches specially designed for industrial application with harsh environment, support RIPv1/v2,OSPFv2 and static routing, , offer 4 gigabit combo and 24 1000M ports, s, support HF-Ring protocol, self healing time≤15ms, adapt fanless design, -40℃～+85℃ wide working emperature, variety power supply for option
-
-
48G+8T Layer 3 Managed Industrial Ethernet SwitchHF-IES-3856M seriesdescriptionHF-IES-3856M series is a layer 3 industrial Ethernet switch, equipped with large capacity, full wire-speed, multiple functions, high reliability, provide 256Gbps switching capacity
and 190.5Mpps L2/L3 packet forwarding capacity. All ports support wire-speed forwarding at the same time. Offer 56Ethernet ports, including 32 1G RJ45 ports, 16 1G combo ports
and 8 0G SFP ports. Support advanced switching performances of L2/L3/MPLS/MPLS-TP,
-
Support RIP v1/v2，OSFP v2，static routing
Support HF-Ring，STP, RSTP，VRRP，IEC 62439-6/3, Self healing time≤15ms
Support IGMP，IGMP Snooping，GMRP，PIM-SM，PIM-DM，and static multicast
Support 802.1q VLAN, QoS, 802.1x，SSH，SSL，TACACS+，RADIUS，ACL
Support port trunking，port speed limit，broadcast storm control, multicast storm control, unicast storm control
Support CLI, Telnet, WEB, SNMP v1/2/3, RMON, LLDP, DHCP, HF-NMS
Support upload and download of FTP/TFTP configand syslog
Offer alarm output of IP conflict, MAC conflict, power, temperature, ring
Support Link check，link status check
Support SNTP
Variety input voltage for optional
Support port mirroring,VCT
Support WEB interface config and command line config
Redundant dual inputs design
Comply with electro magnetic compatibility requirements with industrial 4grade
Wide operating temperature:-40℃～+85℃
Physical Port | ||||
1000Base-FX | 1000Base-FX, SM/MM, LC | |||
1000Base-TX | 10/100/1000Base-T(X), auto-negotiation RJ45 | |||
Transmission Distance | ||||
Twisted pair | 100m(Adopt standard CAT5, CAT5e) | |||
Multi-mode | 850nm 550m(1000M) | |||
Single mode | 1310nm 10KM/40KM(1000M) 1550nm 60KM/80KM(1000M) | |||
Technology | ||||
Standards | IEEE802.3i/802.3u/802.3ab/802.3ad/802.3z/802.3x/802.1p/80 2.1q/802.1x, IEC62439-6/62439-3 | |||
Protocol | HF-Ring, RIP v1/v2, OSFP v2, static routing, STP, RSTP, VRRP, IGMP, IGMP Snooping, GMRP, PIM-SM, PIM-DM, CLI, Telnet, WEB, SNMPv1/2/3, RMON, LLDP, DHCP, HF-NMS, SSH, SSL,TACACS+, RADIUS, ACL | |||
MIB | MIB-II, Ethernet-Like MIB, Q-BRIDGE MIB, Bridge MIB, RSTP MIB, RMON MIB Group 1, 2, 3, 9 | |||
Flow Control | IEE802.3x flow control, back pressure flow control | |||
Switch Properties | ||||
Priority Queues | 8 | |||
Maximum No of Available VLANs | 4094 | |||
VLAN ID Range | 1-4094 | |||
MAC Table Size | 16K | |||
Packet Buffer Size | 12Mbit | |||
Packet Forwarding Rate | 23.8Mpps | |||
Switching delay | <5µS | |||
Interfaces | ||||
SFP Port | 1000Base-X, SFP interface | |||
RJ45 Port | 10/100/1000Base-T(X) auto negotiation | |||
Console Port | RJ45 connector, RS232 TX/RX | |||
Alarm Contact | 2-pin relay output | |||
LED indicators | |
Power | Green On - Power on Green Off - Power off |
Run/Ring Indicator | Green On - The system starts up successfully Green Off - The system doesn’t start up successfully |
10/100/1000Base-T(X) RJ45 Port Indicator | Yellow for port speed: Yellow On —The port works at 1000Mbps. Yellow Off—The port works at 10M or 100M bps. Green for port Link/Act: Green On and Blinking—Port LINK UP, data is transmitted. Green On – No Blinking –Port Link Up Green Off - Port Link down |
1000Base-X SFP Port Indicator | Green for port Link/Act: Green On and Blinking—Port Link Up, data is transmitted. Green On—Port Link Up Green Off—Port Link Down |
Power | |
Power backup | Optional redundant dual inputs |
Input Voltage | 220VAC/DC(88~264VAC,120~300VDC), optional 24VDC(10~36VDC), 48VDC(18~72VDC),110VDC(72~154VDC) |
Full Load | 20W |
Overload Current Protection | Yes |
Reverse Polarity Protection | Yes |
Connection | 7-Pin terminal block |
Environmental | |
Storage Temperature | -40 to 85ºC (-40 to 185℉) |
Operating Temperature | -40 to 85ºC (-40 to 185℉) |
Operating Humidity | 5% to 95% Non-condensing |
Physical Characteristic | |
Enclosure | Metal housing with IP40 Protection |

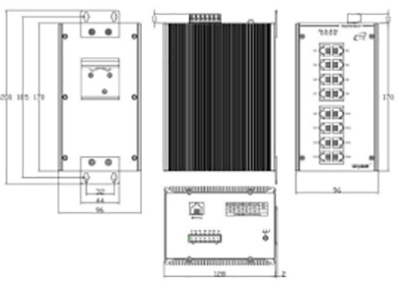

Dimension (W x D x H) | 96×128×170mm |
Weight(kg) | 1.2kg |
Installation | Din-Rail mounting, Wall mounting |
Warranty | 5 years |
HF-IES-3516M-16GTX-D
HF-IES-3516M-16GFX/SFP-D
HF-IES-3516M-12GFX/SFP-4GTX-D
HF-IES-3516M-8GFX/SFP-8GTX-D
HF-IES-3516M-4GFX/SFP-12GTX-D
