1000Base-FX

1000Base-FX, SM/MM, LC

100Base-TX

10/100Base-T(X), auto-negotiation RJ45

Transmission Distance

Twisted pair

100m(Adopt standard CAT5, CAT5e)

Multi-mode

1310nm 5KM(100M) 850nm 550m(1000M)

Single mode

1310nm 40KM/60KM(100M) 1550nm 60KM/80KM(100M)

1310nm 10KM/40KM(1000M) 1550nm 60KM/80KM(1000M)

Technology

Standards

IEEE802.3i/802.3u/802.3ab/802.3ad/802.3z/802.3x/802.1p/80

2.1q/802.1x, IEC62439-6/62439-3

Protocol

HF-Ring, RIP v1/v2, OSFP v2, static routing, STP, RSTP, VRRP, IGMP, IGMP Snooping, GMRP, PIM-SM, PIM-DM, CLI, Telnet, WEB, SNMPv1/2/3, RMON, LLDP, DHCP, HF-NMS, SSH, SSL,TACACS+, RADIUS, ACL

MIB

MIB-II, Ethernet-Like MIB, Q-BRIDGE MIB, Bridge MIB, RSTP MIB, RMON MIB Group 1, 2, 3, 9

Flow Control

IEE802.3x flow control, back pressure flow control

Switch Properties

Priority Queues

8

Maximum No of Available VLANs

4094

VLAN ID Range

1-4094

MAC Table Size

16K

Packet Buffer Size

12Mbit

Packet Forwarding Rate

9.5Mpps

Switching delay

<5µS

Interfaces

Gigabit combo Port

1000Base-X, SFP interface or 10/100/1000Base-T(X) auto negotiation

SFP Port

100Base-X, SFP interface

RJ45 Port

10/100Base-T(X) auto negotiation

Console Port

RJ45 connector, RS232 TX/RX

Alarm Contact

2-pin relay output

Power

Green On - Power on    Green Off - Power off

Run/Ring Indicator

Green On - The system starts up successfully

Green Off - The system doesn’t start up successfully

10/100Base-T(X)

RJ45 Port Indicator

Yellow for port speed:

Yellow On —The port works at 100Mbps. Yellow Off—The port works at 10Mbps. Green for port Link/Act:

Green On and Blinking—Port LINK UP, data is transmitted.

Green On – No Blinking –Port Link Up Green Off - Port Link down

100Base-X or 1000Base-X SFP Port Indicator

Green for port Link/Act:

Green On and Blinking—Port Link Up, data is transmitted.

Green On—Port Link Up Green Off—Port Link Down

Power

Power backup

Optional redundant dual inputs

Input Voltage

220VAC/DC(88~264VAC,120~300VDC), optional 24VDC(10~36VDC),

48VDC(18~72VDC),110VDC(72~154VDC)

Full Load

40W

Overload Current Protection

Yes

Reverse Polarity Protection

Yes

Power Connection

5-Pin  terminal block

Environmental

Storage Temperature

-40 to 85ºC (-40 to 185℉)

Operating Temperature

-40 to 85ºC (-40 to 185℉)

Operating Humidity

5% to 95% Non-condensing

Physical Characteristic

Enclosure

Metal housing with IP40 Protection

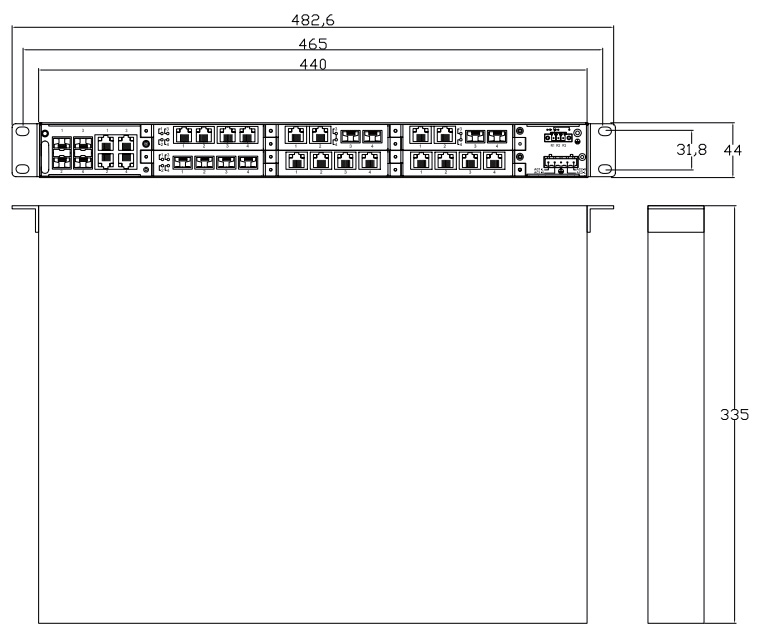

Dimension (W x D x H)

440×335×44mm

Weight(kg)

4.0kg

Installation

1U Rack

Warranty

5 years
