8-Port 1000M Layer 2 Managed Industrial Ethernet SwitchHF-IES-4000-8P6G2SFdescriptionHF-IES-4000-8P6G2SF is a managed redundant ring Ethernet switch with 6x10/100/1000Base-T(X) ports and 2x100/1000Base-X SFP ports with complete support of Ethernet redundancy protocol, HF-Ring (recovery time≤ 15ms). It’s plug and play, designed in wide operating temperaturefrom -40 ºC to 85 ºC, with performance of dust/salt fog proof, make it completely suitable for harsh environments.
-
-
10-Port Layer 2 Managed Industrial Ethernet SwitchHF-IES-4000-10P8T2SFdescriptionHF-IES-4000-10P8T2SF is a managed redundant ring Ethernet switch with 8x10/100Base-T(X) ports and 2x100/1000Base-X SFP ports with complete support of Ethernet redundancy protocol, HF-Ring (recovery time≤15ms). It’s plug and play, designed in wide operating temperaturefrom -40 ºC to 85 ºC, with performance of dust/salt fog proof, make it completely suitable for harsh environments.
-
-
10-Port 1000M Layer 2 Managed Industrial Ethernet SwitchHF-IES-4000-10P8G2SFdescriptionHF-IES-4000-10P8G2SF is a managed redundant ring Ethernet switch with 8x10/100/1000Base-T(X) ports and 2x100/1000Base-X SFP ports with complete support of Ethernet redundancy protocol, HF-Ring (recovery time≤ 15ms). It’s plug and play, designed in wide operating temperaturefrom -40 ºC to 85 ºC, with performance of dust/salt fog proof, make it completely suitable for harsh environments.
-
-
11-Port Layer 2 Managed Industrial Ethernet SwitchHF-IES-4000-11P8T3SFdescriptionHF-IES-4000-11P8T3SF is a managed redundant ring Ethernet switch with 8x10/100Base-T(X) ports and 3x100/1000Base-X SFP ports with complete support of Ethernet redundancy protocol, HF-Ring (recovery time≤15ms). It’s plug and play, designed in wide operating temperaturefrom -40 ºC to 85 ºC, with performance of dust/salt fog proof, make it completely suitable for harsh environments.
-
-
12-Port 1000M Layer 2 Managed Industrial Ethernet SwitchHF-IES-4000-12P8G4SFdescriptionHF-IES-4000-12P8G4SF is a managed redundant ring Ethernet switch with 8x10/100/1000Base-T(X) ports and 4x100/1000Base-X SFP ports with complete support of Ethernet redundancy protocol, HF-Ring (recovery time≤ 15ms). It’s plug and play, designed in wide operating temperaturefrom -40 ºC to 85 ºC, with performance of dust/salt fog proof, make it completely suitable for harsh environments.
-
-
14-Port 1000M Layer 2 Managed Industrial Ethernet SwitchHF-IES-4000-14P8G6SFdescriptionHF-IES-4000-14P8G6SF is a managed redundant ring Ethernet switch with 8x10/100/1000Base-T(X) ports and 6x100/1000Base-X SFP ports with complete support of Ethernet redundancy protocol, HF-Ring (recovery time≤ 15ms). It’s plug and play, designed in wide operating temperaturefrom -40 ºC to 85 ºC, with performance of dust/salt fog proof, make it completely suitable for harsh environments
-
-
14-Port 1000M Layer 2 Managed Industrial Ethernet SwitchHF-IES-4000-14P4G10SFdescriptionHF-IES-4000-14P4G10SF is a managed redundant ring Ethernet switch with 4x10/100/1000Base-T(X) ports and 10x100/1000Base-X SFP ports with complete support of Ethernet redundancy protocol, HF-Ring (recovery time≤ 15ms). It’s plug and play, designed in wide operating temperaturefrom -40 ºC to 85 ºC, with performance of dust/salt fog proof, make it completely suitable for harsh environments.
-
-
16-Port 1000M Layer 2 Managed Industrial Ethernet SwitchHF-IES-4000-16P8G8SFdescriptionHF-IES-4000-16P8G8SF is a managed redundant ring Ethernet switch with 8x10/100/1000Base-T(X) ports and 6x100/1000Base-X SFP ports with complete support of Ethernet redundancy protocol, HF-Ring (recovery time≤ 15ms). It’s plug and play, designed in wide operating temperaturefrom -40 ºC to 85 ºC, with performance of dust/salt fog proof, make it completely suitable for harsh environments.
-
-
16-Port 1000M Layer 2 Managed Industrial Ethernet SwitchHF-IES-4000-16P16GdescriptionHF-IES-4000-16P16G is a managed redundant ring Ethernet switch with 16x10/100/1000Base-T(X) ports with complete support of Ethernet redundancy protocol, HF-Ring (recovery time≤15ms). It’s plug and play, designed in wide operating temperaturefrom -40 ºC to 85 ºC, with performance of dust/salt fog proof, make it completely suitable for harsh environments.
-
-
18-Port 1000M Layer 2 Managed Industrial Ethernet SwitchHF-IES-4000-18P16G2SFdescriptionHF-IES-4000-18P16G2SF is a managed redundant ring Ethernet switch with 16x10/100/1000Base-T(X) ports and 2x100/1000Base-X SFP ports with complete support of Ethernet redundancy protocol, HF-Ring (recovery time≤ 15ms). It’s plug and play, designed in wide operating temperaturefrom -40 ºC to 85 ºC, with performance of dust/salt fog proof, make it completely suitable for harsh environments.
-
-
20-Port 1000M Layer 2 Managed Industrial Ethernet SwitchHF-IES-4000-20P16G4SFdescriptionHF-IES-4000-20P16G4SF is a managed redundant ring Ethernet switch with 16x10/100/1000Base-T(X) ports and 4x100/1000Base-X SFP ports with complete support of Ethernet redundancy protocol, HF-Ring (recovery time≤ 15ms). It’s plug and play, designed in wide operating temperaturefrom -40 ºC to 85 ºC, with performance of dust/salt fog proof, make it completely suitable for harsh environments.
-
-
26-Port 1000M Layer 2 Managed Industrial Ethernet SwitchHF-IES-4000-26P24G6SFdescriptionHF-IES-4000-26P24G6SF is a managed redundant ring Ethernet switch with 20x10/100/1000Base-T(X) ports and 4 Gigabit combo ports and 2x100/1000Base-X SFP ports with complete support of Ethernet redundancy protocol, HF-Ring (recovery time≤15ms). It’s plug and play, designed in wide operating temperaturefrom -40 ºC to 85 ºC, with performance of dust/salt fog proof, make it completely suitable for harsh environments.
-
-
37-Port Layer 2 Managed Industrial Ethernet SwitchHF-IES-4000-37P33SF4XGdescriptionHF-IES-4000-37P33SF4XG is a managed redundant ring Ethernet switch with 4x10G ports and 33x100/1000Base-X SFP ports with complete support of Ethernet redundancy protocol, HF-Ring (recovery time≤15ms). It’s plug and play, designed in wide operating temperaturefrom -40 ºC to 85 ºC, with performance of dust/salt fog proof, make it completely suitable for harsh environments.
-
-
52-Port Layer 2 Managed Industrial Ethernet SwitchHF-IES-4000-52P48G48SF4XGdescriptionHF-IES-4000-52P48G48SF4XG is a managed redundant ring Ethernet switch with 4x10G ports and 48 Gigabit combo ports and 1 Gigabit manage port with complete support of Ethernet redundancy protocol, HF-Ring (recovery time≤ 15ms). It’s plug and play, designed in wide operating temperaturefrom -40 ºC to 85 ºC, with performance of dust/salt fog proof, make it completely suitable for harsh environments.
-
-
6-Port 100M Layer 2 Managed Industrial Ethernet SwitchHF-IES-2006M系列descriptionHF-IES-2006M series is a low-power consumption, 6-port managed switch. It’s plug and play, support VLAN etc.adapt wide working temperature -40℃～+85
℃, relative humidity 5~95%(no condensing), equipped with performance of dust/salt fog proof, make it completely suitable for harsh environment.
-
-
24+4G Managed Industrial Ethernet SwitchHF-IES-2228M serialdescriptionHF-IES-2228M series is a 28-port managed switch. Support 4 Gigabit combo ports and 3 100M optional slot(provide max up to 24 100M interfaces). It’s plug and play, support HF-Ring protocol, self healing time≤15ms VLAN etc. Adapt wide working temperature -40℃~+85℃, relative humidity 5~95%(no condensing), Equipped with performance of dust/salt fog proof, make it completely suitable for harsh environment.
-
-
6-Port 1000M Layer 2 Managed Industrial Ethernet SwitchHF-IES-2506M系列descriptionHF-IES-2506M series is a 6-port Gigabit managed switch. Offer max up to 6 Gigabit port, It’s plug and play, support RSTP protocol(self-healing ≤15ms), VLAN etc. Adapt wide industrial grade design, 40℃ ~+85℃, relative humidity 5~95%(no condensation), with performance of dust/salt.make it completely suitable for harsh environments.
-
-
28-Port 1000M Layer 2 Managed Industrial Ethernet SwitchHF-IES-2528M seriesdescriptionHF-IES-2528M series is 28-port Gigabit managed switch. It’s plug and play, support HF-Ring protocol(recovery time ≤15ms), VLAN etc. Adapt wide industrial grade design, 40℃ ~+85℃, relative humidity 5~95%(no condensation), with performance of dust/salt, make it completely suitable for harsh environments
-
Support HF-Ring redundant technology
Network self- healing ≤15ms
Support IGMP Snooping, GMRP and static mulicast
Support IEEE802.1Q VLAN、PVLAN setting
Support IEEE802.1P QoS function , support WRR
Support port trucking, port limit, broadcast storm control
Comply with electromagnetic compatibility requirements with industrial 4 grade
Support WEB interface configuration
Green industry series without fan and low-power design
Variety input voltage for option
Wide operating temperature: -40℃～+85℃
Meet the stringent electrical environment and work requirements
Redundant dual power supply
IP40 protection, metal housing
LED indicators | |
Power | Green On - Power on Green Off - Power off |
System Indicator | Green On - The system starts up successfully Green Off - The system doesn’t start up successfully |
10/100/1000Base-T(X) RJ45 Port Indicator | Yellow for port speed: Yellow On —The port works at 1000Mbps. Yellow Off—The port works at 100Mbps. Green for port Link/Act: Green On and Blinking—Port LINK UP, data is transmitted. Green On – No Blinking –Port Link Up Green Off - Port Link down |
1000Base-X SFP Port Indicator | Green for port Link/Act: Green On and Blinking—Port Link Up, data is transmitted. Green On—Port Link Up Green Off—Port Link Down |
Power | |
Input Voltage | 220VAC/DC(88~264VAC,120~300VDC), optional 24VDC(10~36VDC), 48VDC(18~72VDC) 110VDC(72~154VDC) |
Full Load | 40W |
Overload Current Protection | Yes |
Reverse Polarity Protection | Yes |
Connection | 7-Pin terminal block |
Environmental | |
Storage Temperature | -40 to 85ºC (-40 to 185℉) |
Operating Temperature | -40 to 85ºC (-40 to 185℉) |
Operating Humidity | 5% to 95% Non-condensing |
Physical Characteristic | |
Enclosure | Metal housing with IP40 Protection |

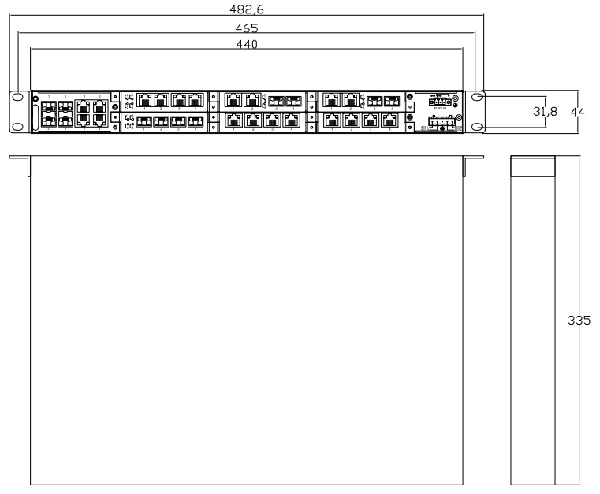

Dimension (W x D x H) | 440×335×44mm |
Weight(kg) | 3.8kg |
Installation | 1U Rack |
Warranty | 5 years |
HF-IES-2528M-4GC-24GTX
HF-IES-2528M-4GC-2GFX/SFP-22GTX
HF-IES-2528M-4GC-4GFX/SFP-20GTX
HF-IES-2528M-4GC-8GFX/SFP-16GTX
HF-IES-2528M-4GC-12GFX/SFP-12GTX
HF-IES-2528M-4GC-16GFX/SFP-8GTX
HF-IES-2528M-4GC-20GFX/SFP-4GTX
HF-IES-2528M-4GC-24GFX/SFP
