48G+8T Layer 3 Managed Industrial Ethernet SwitchHF-IES-3856M seriesdescriptionHF-IES-3856M series is a layer 3 industrial Ethernet switch, equipped with large capacity, full wire-speed, multiple functions, high reliability, provide 256Gbps switching capacity
and 190.5Mpps L2/L3 packet forwarding capacity. All ports support wire-speed forwarding at the same time. Offer 56Ethernet ports, including 32 1G RJ45 ports, 16 1G combo ports
and 8 0G SFP ports. Support advanced switching performances of L2/L3/MPLS/MPLS-TP,
-
2U Rack, support 56 Ethernet ports, including 32 GE RJ45 ports ,16 GE combo ports and 8 10G SFP ports
Support layer3 switching technology, support RIP, OSFP, BGP etc. support static routing, IP policy routing
Support IPv4，IPv6
Support IGMP，IGMP Snooping v1&v2&v3，PIM- SM&SSM static multicast
Support STP，RSTP，MSTP，ERPS、G.8031，G.8032
Support ACL、QoS、VLAN、QinQ，SNMPV1&V2&V3 RMON
IP40 protection leve
Industrial grand4 level dual power supply,fanless design
Wide operating temperature:-40℃～+85℃
Physical Port | ||||
FX | SFP | |||
TX | RJ45 | |||
Transmission Distance | ||||
Twisted pair | 100m(Adopt standard CAT5, CAT5e) | |||
Multi-mode | 850nm 550m(1000M) | |||
Single mode | 1310nm 10KM/40KM(1000M) 1550nm 60KM/80KM(1000M) | |||
Technology | ||||
Standards | IEEE802.3i/802.3u/802.3ab/802.3ad/802.3ae/802.3z/802.3x/8 02.1p/802.1q/802.1s/802.1x, G.8031, G.8032 | |||
Protocol | IPv4, IPv6, IGMP, IGMP Snooping v1&v2&v3, PIM-SM&SSM static multicast, ACL,QoS,VLAN, QinQ, SNMP v1&v2&v3, RMON | |||
MIB | MIB-II, Ethernet-Like MIB, Q-BRIDGE MIB, Bridge MIB, RSTP MIB, RMON MIB Group 1, 2, 3, 9 | |||
Flow Control | IEE802.3x flow control, back pressure flow control | |||
Switch Properties | ||||
Priority Queues | 8 | |||
Maximum No of Available VLANs | 4094 | |||
VLAN ID Range | 1-4094 | |||
Route | 64K | |||
MAC Table Size | 128K | |||
Packet Buffer Size | 24Mbit | |||
Packet Forwarding Rate | 190.5Mpps | |||
Switching delay | <5µS | |||
Interfaces | ||||
Gigabit combo Port | 1000Base-X, SFP interface or 10/100/1000Base-T(X) auto negotiation | |||
SFP Port | 1000Base-X, SFP interface | |||
RJ45 Port | 10/100/1000Base-T(X) auto negotiation | |||
Console Port | RJ45 connector, RS232 TX/RX | |||
Alarm Contact | 2-pin relay output | |||
LED indicators | |
Power | Green On - Power on Green Off - Power off |
Run/Ring Indicator | Green On - The system starts up successfully Green Off - The system doesn’t start up successfully |
10/100/1000Base-T(X) RJ45 Port Indicator | Yellow for port speed: Yellow On —The port works at 1000Mbps. Yellow Off—The port works at 10M or 100M bps. Green for port Link/Act: Green On and Blinking—Port LINK UP, data is transmitted. Green On – No Blinking –Port Link Up Green Off - Port Link down |
1000Base-X or 10000Base-X SFP Port Indicator | Green for port Link/Act: Green On and Blinking—Port Link Up, data is transmitted. Green On—Port Link Up Green Off—Port Link Down |
Power | Optional redundant dual inputs |
Power backup Input Voltage | 220VAC/DC(88~264VAC,120~300VDC), optional 24VDC(10~36VDC), 48VDC(18~72VDC),110VDC(72~154VDC) |
Full Load | 70W |
Overload Current Protection | Yes |
Reverse Polarity Protection | Yes |
Power Connection | 5-Pin terminal block |
Environmental | |
Storage Temperature | -40 to 85ºC (-40 to 185℉) |
Operating Temperature | -40 to 85ºC (-40 to 185℉) |
Operating Humidity | 5% to 95% Non-condensing |
Physical Characteristic | |
Enclosure | Metal housing with IP40 Protection |

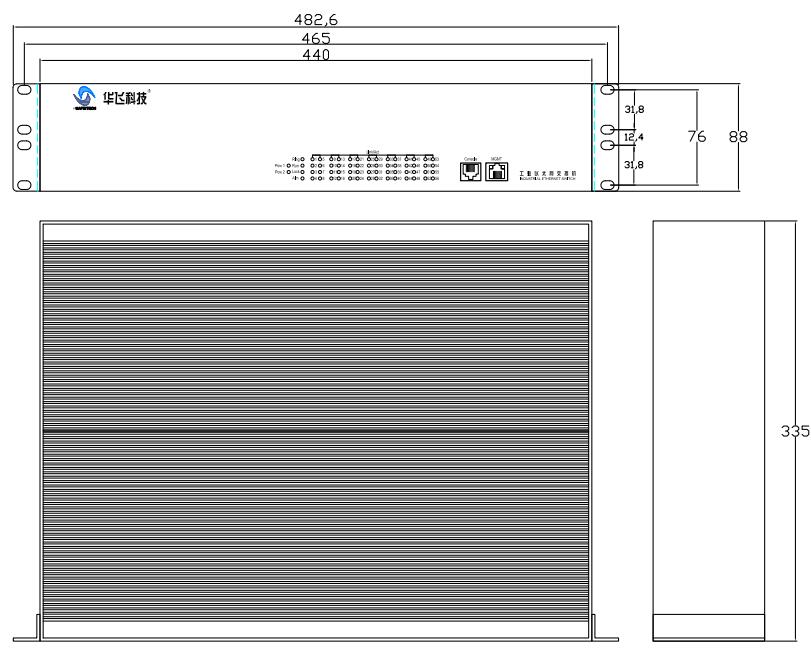

Dimension (W x D x H) | 440×335×88mm |
Weight(kg) | 5.5kg |
Installation | 2U Rack |
Warranty | 5 years |
HF-IES-3856M-8TFX/SFP-16GC-32GTX
