HF-IES-4000-18P16G2SF-P16

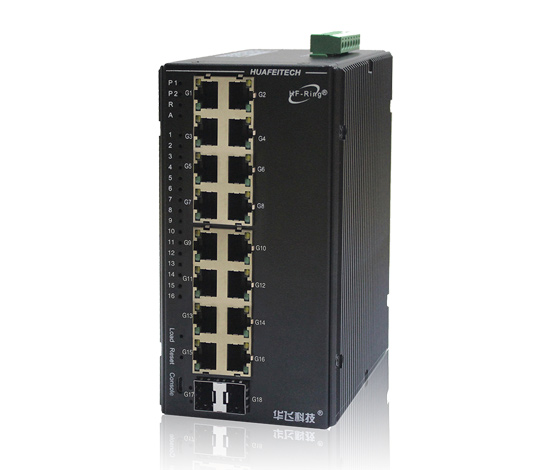

HF-IES-4000-18P16T2SF-P16 is a managed redundant ring PoE Ethernet switch with16 10/100/Base-T(X) ports with PoE+ function and 2x100/1000Base-X SFP ports with complete support of Ethernet redundancy protocol, HF-Ring (recovery time≤15ms). Equipped with 16X10/100Base-T(X) 30Watts P.S.E.(Power Sourcing Equipment) ports. P.S.E. is a device that will provide power in a PoE setup. It’s plug and play, designed in wide operating temperature from -40 ºC to 85 ºC, with performance of dust/salt fog proof, make it completely suitable for harsh environments.
16 IEEE 802.3af/at PoE compliance 10/100 Base-T(X) ports, 2 100/1000Base-X SFP ports
HF-Ring (recovery time≤15ms), RSTP/STP, and MSTP for network redundancy
Support IPv4/IPv6
Support 1588 ptpv2, Sync-E
Support ITU-T G.8032 Ethernet Ring Protection
Support IGMP v1/v2/v3 Snooping, MLD v1/v2 Snooping
Support IEEE802.1Q VLAN/MAC based VLAN/Protocol based VLAN/ IP subnet based VLAN/QinQ/GVRP/MVR
Support DHCP Server/Client/Relay/snooping
Support Port-based IEEE802.1X/Single and multiple IEEE802.1X/ MAC-based authentication/VLAN Assignment/ IP source guard/RADIUS/ TACACS+/ACL/SSHv2/HTTPS
Support DNS client/proxy
Support LACP/Link Aggregation Static
Support port mirroring, port speed limit, broadcast storm control
Support two 2.5G fiber port(optional 1G)
Support web interface management, CLI-Console/Telnet,SNMPv1/v2/v3, RMON/System syslog
EMC industrial level 4
Physical Port | |
100/1000Base-X SFP port | 2 |
10/100Base-T(X)Ports in RJ45 | 16 |
Transmission Distance | |
Twisted pair | 100m(Adopt standard CAT5, CAT5e) |
Multi-mode | 1310nm 5KM(100M), 850nm 550M(1000M) |
Single mode | 1310nm 40KM/60KM(100M) 1550nm 60KM/80KM(100M) 1310nm 10KM/40KM(1000M) 1550nm 60KM/80KM(1000M) |
Technology | |
Standards | IEEE802.3i/802.3u/802.3ab/802.3z/802.3x/802.3ad/802.1p/ 802.1q/802.1d/802.1w/802.1s/802.1ad/802.3az/802.1x/ 802.1ab, IEEE802.3af-2003, IEEE802.3at-2009 |
Protocol | HF-Ring, IGMP v1/v2/v3 Snooping, GVRP, SNMPv1/2/3, MLD v1/v2 Snooping, DHCP Server/Client/Relay/snooping, TFTP, RMON, HTTP, HTTPS, Telnet, Syslog, SSHv2, SNMP Inform, LLDP, NTP Server/Client, Q-in-Q, RADIUS, TACACS+,ACL |
MIB | MIB-II, Ethernet-Like MIB, Q-BRIDGE MIB, Bridge MIB, RSTP MIB, RMON MIB Group 1, 2, 3, 9 |
DDM Function | Tx/Rx Optical Power and Temperature control |
Flow Control | IEE802.3x flow control, back pressure flow control |
Switch Properties | |
Priority Queues | 8 |
Maximum No of Available VLANs | 4094 |
VLAN ID Range | 1-4094 |
MAC Table Size | 8K |
Packet Buffer Size | 4Mbit |
Packet Forwarding Rate | 5.63Mpps |
Switching delay | <5µS |
Interfaces | |
SFP Port | 100/1000Base-X, SFP interface |
RJ45 Port | 10/100Base-T(X) auto negotiation |
802.3af/at PoE Port | Up to 30W on each PoE port, 720mA |
Console Port | Micro USB connector, RS232 TX/RX |
Alarm Contact | 2-pin relay output with current carrying capacity of 0.5A@60V |
Environmental | |
Storage Temperature | -40 to 85oC (-40 to 185oF) |
Operating Temperature | -40 to 85oC (-40 to 185oF) |
Operating Humidity | 5% to 95% Non-condensing |
Physical Characteristic | |
Enclosure | Metal housing with IP40 Protection |

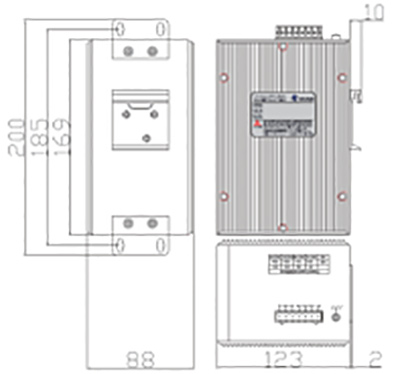

Dimension (W x D x H) | 88×123×169mm |
Weight(kg) | 1.0kg |
Installation | Din-Rail mounting, Wall mounting |
Warranty | 5 years |
LED indicatorsors | |
Power | Green On - Power on Green Off - Power off |
System Indicator | Green On - The system starts up successfully Green Off - The system doesn’t start up success fully |
10/100Base-T(X) RJ45 Port Indicator | Yellow for port speed: Yellow On —The port works at 100Mbps. Yellow Off—The port works at 10Mpbs. Green for port Link/Act: Green On and Blinking—Port LINK UP, data is transmitted. Green On – No Blinking –Port Link Up Green Off - Port Link down |
1000Base-X Fiber Port Indicator | Green for port Link/Act: Green On and Blinking—Port Link Up, data is transmitted. Green On—Port Link Up Green Off—Port Link Down |
Power | |
Input Voltage | 48V DC redundant dual inputs |
Full Load | 14W |
Overload Current Protection | Yes |
Reverse Polarity Protection | Yes |
Connection | 7-Pin terminal block |
