HF-IES-EN3528M seriess
HF-IES-EN3528M series is managed Layer 3 industrial Ethernet switches with 28 M12 1000M ports. Which support 10/100/1000M auto-negotiation port or 1000Base-X port, support HF-Ring Ethernet ring protection protocol which is independent intellectual property rights, used to form a fast self-healing ring and realize the redundancy backup network, network self-healing time≤ 15ms, support RIPv1/v2, OSPFv2, BGPv4 and static routing, equipped with 4 Giga combo ports and 24 M12 ports. HF-IES-EN3528M use metal as the shell material, and realize IP40 protection degree. It has targeted design for vibration, shock, dust, electromagnetic interference and other factors for traffic, in railway, mining and other industries field ,to ensure the stable operation of the network. HF-IES-EN3528M adopt no fan design. It can be used under to -40 ℃ ~ +85 ℃ temperature, and with variety power supply voltage for selection.
10/100/1000BaseT(X) or 1000Base-FX, Full/duplex, MDI/MDI-X auto connection
Support RIP v1/v2, OSFP v2, static routing
Support HF-Ring, support STP\RSTP\MSTP\VRRP, Self healing time≤15ms
Support IGMP, IGMP Snooping, GMRP, PIM-SM, PIM-DM and static multicast
Support port trucking, port speed limit, broadcast storm control, multicast storm control, unicast storm control
Support 802.1q VLAN, QoS
Support 802.1x, SSH, SSL, TACACS+, RADIUS, ACL
Support CLI, Telnet, WEB, SNMP v1/2/3, RMON, LLDP, DHCP, HF-NMS
Support Port mirroring, VCT, SNTP
Support Link check, link status check function
Offer Alarm output of IP conflict, MAC conflict, Power, temperature, RING
Support upload and download of FTP/TFTP & syslog
Support WEB configuration and command line configuration
Fanless and low-power design
Comply with electromagnetic compatibility requirements with industrial 4 grade
IP40 protection grade,metal shell
Redundant power input
Support variety input voltage for optional
Wide operating temperature：-40℃～+85℃
端口特性 | |
光口 | SFP |
电口 | 工业级M12接口 |
管理 | Console-RJ45，USB |
传输距离 | |
双绞线 | 100m(采用标准CAT5、CAT5e网络线缆) |
多模光纤 | 850nm 550m（1000M） |
单模光纤 | 1310nm 10KM/40KM(1000M) 1550nm 60KM/80KM(1000M) |
技术参数 | |
协议标准 | IEEE 802.3i/802.3u/802.3ab/802.3ac/802.3ad/802.3z/802.3x/802.1p/802.1q/ 802.1s/802.1x，IEC62439-6/62439-3，IEEE 802.3af-2003，IEEE 802.3at-2009 |
流量控制 | IEEE802.3x流控、背压流控 |
传输方式 | 存储转发 |
交换属性 | 优先级:8, VLAN:256, VLAN ID:1-4094, 组播:256, MAC表:16K, 缓 存:12Mbit, 延时:<5µS, 包转发率:41.7Mpps |
电源特性 | |
电源备份 | 220VAC(88～264VAC) ； 双电源热冗余 （选配） |
输入电压 | 220VAC/DC(88～264VAC，120～300VDC) 可选 24VDC(10～36VDC),48VDC(18～72VDC), 110VDC(72～154VDC) |
电源连接 | 5芯5.08mm间距插入端子 |
告警连接 | 3芯3.81mm间距插入端子（与电源共用同一个端子） |
电源保护 | 支持反接保护、过压保护、过流保护、告警输出 |
额定功率 | ≤40W |
指示灯 | |
LED | 电源：PWR，接口：Link/Act、Speed (RJ45口)， 环网LED：Ring，告警：Alarm，系统运行：Run |
环境特性 | |
温湿度 | 工作温度：-40℃～+85℃，贮存温度：-40℃～+85℃， 相对湿度：5～95%(无凝露) |
认证 | |
EMI | FCCCFR47 Partl5．EN55022／ClSPR22．ClassA |
EMS | IEC61000-4-2(ESD)±8kV(contact),±15kV(air) ;lEC61000-4-3(RS) 10V/m(80MHz 2GHz);lEC61000-4-4(EFT)Power Port:±4kV;Data Port:±2kV ;IEC61000-4-5(Surge)PowerPort：±2kV/DM,±4kV/CM ;DataPort:±2kV;IEC61000-4-6(CS)3v(10kHz 150kHz);10V(150kHz 80MHz);IEC61000-4-8(工频磁场)100Nm(cont.)/1000A /m(1s-3s); IEC61000-4-9(脉冲磁场)1000A /m;IEC61000-4-10(阻尼振荡)100A /m;IEC61000-4-12(振荡波)2.5kV/CM,1kV/DM;IEC61000-4-16(共模 传导)30V(cont.),300V(1G) |
机械 | 振动:IEC60068-2-6,冲击:IEC60068-2-27,跌落:IEC60068-2-32 |
质保周期 | |
质保周期 | 5年 |
机械特性 | |
产品外壳 | 金属 无风扇，IP40防护等级 |

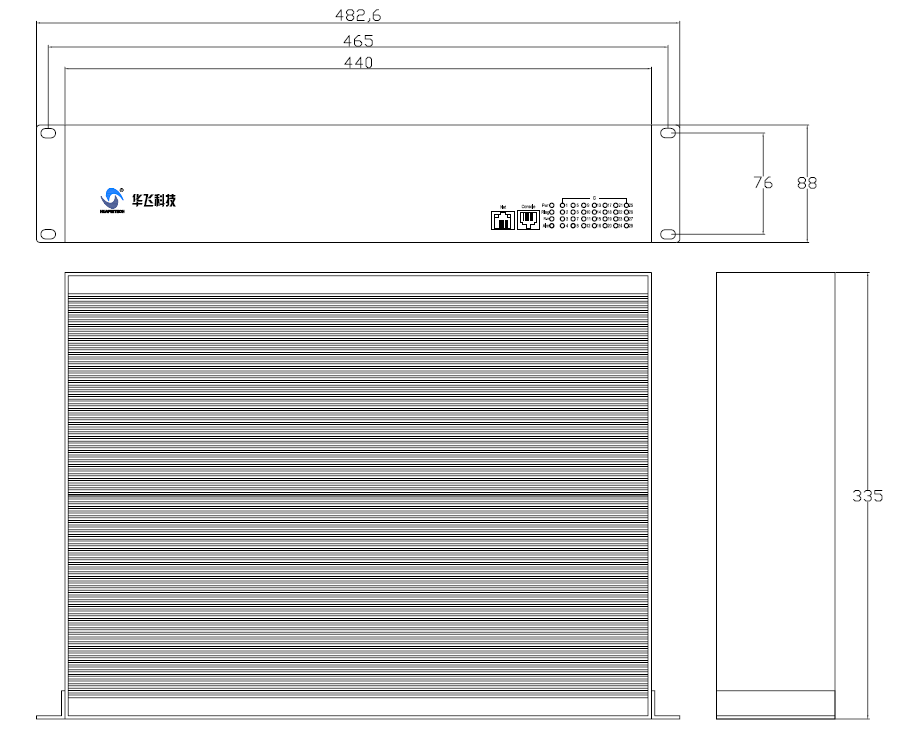

产品尺寸 | 440×335×88mm |
产品重量 | 5.5Kg |
安装方式 | 2U机箱 |
HF-IES-EN3528M-4GC-24GTX
