HF-IES-4000-52P48G48SF4XG-P48

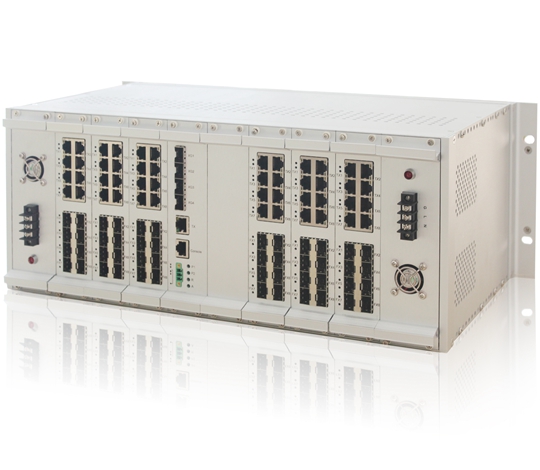

HF-IES-4000-52P48G48SF4XG-P48 is a managed redundant ring Ethernet switch with 4 10G ports and 48 Gigabit combo ports with PoE+ function and 1 Gigabit manage port with complete support of Ethernet redundancy protocol, HF-Ring (recovery time≤15ms). Equipped with 30 Watts P.S.E.(Power Sourcing Equipment) Ports. P.S.E. is a device that will provide power in a PoE setup. It’s plug and play, designed in wide operating temperaturefrom -40 ºC to 85 ºC, with performance of dust/salt fog proof, make it completely suitable for harsh environments.
48 IEEE 802.3af/at PoE compliance 10/100/1000Base-T(X) ports, and 4 10G ports, 1 Gigabit manage port.
HF-Ring (recovery time≤15ms), RSTP/STP, and MSTP for network redundancy
Support IPv4/IPv6
Support web interface management, CLI-Console/Telnet,SNMPv1/v2/v3, RMON/System syslog
Support IEEE802.1Q VLAN/MAC based VLAN/Protocol based VLAN/ IP subnet based VLAN/QinQ/GVRP/MVR
Support Port-based IEEE802.1X/Single and multiple IEEE802.1X/ MAC-based authentication/VLAN Assignment/ IP source guard/RADIUS/ TACACS+/ACL/SSHv2/HTTPS
Support IGMP v1/v2/v3 Snooping, MLD v1/v2 Snooping
Support DHCP Server/Client/Relay/snooping
Support DNS client/proxy
Support LACP/Link Aggregation Static
Support port mirroring, port speed limit, broadcast storm control
EMC industrial level 4
IP40 protection, metal housing
Physical Port | |||||
Gigabit combo Port | 48 | ||||
10G Port | 4 | ||||
Gigabit manage Port | 1 | ||||
Transmission Distance | |||||
Twisted pair | 100m(Adopt standard CAT5, CAT5e) | ||||
Multi-mode | 1310nm 5KM(100M), 850nm 550M(1000M) | ||||
Single mode | 1310nm 40KM/60KM(100M) 1550nm 60KM/80KM(100M) 1310nm 10KM/40KM(1000M) 1550nm 60KM/80KM(1000M) | ||||
Technology | |||||
Standards | IEEE802.3i/802.3u/802.3ab/802.3z/802.3x/802.3ad/802.1p/ 802.1q/802.1d/802.1w/802.1s/802.1ad/802.3az/802.1x/ 802.1ab, IEEE802.3af-2003, IEEE802.3at-2009 | ||||
Protocol | HF-Ring, IGMP v1/v2/v3 Snooping, GVRP, SNMPv1/2/3, MLD v1/v2 Snooping, DHCP Server/Client/Relay/snooping, RMON, HTTPS, Telnet, System syslog, SSHv2, DNS client/proxy, CLI-Console, Q-in-Q, RADIUS, TACACS+, ACL | ||||
MIB | MIB-II, Ethernet-Like MIB, Q-BRIDGE MIB, Bridge MIB, RSTP MIB, RMON MIB Group 1, 2, 3, 9 | ||||
DDM Function | Tx/Rx Optical Power and Temperature control | ||||
Flow Control | IEE802.3x flow control, back pressure flow control | ||||
Switch Properties | |||||
Priority Queues | 8 | ||||
VLAN ID Range | 1-4094 | ||||
MAC Table Size | 32K | ||||
Packet Buffer Size | 32Mbit | ||||
Packet Forwarding Rate | 132.4Mpps | ||||
Switching delay | <5µS | ||||
Interfaces | |||||
Gigabit combo Port | 10/100/1000Base-T(X)or100/1000Base-X, SFP interface | ||||
10G Port | 10G fiber interface | ||||
Gigabit manage Port | Manage interface | ||||
802.3af/at POE Port | Up to 30W on each port on each POE port,720mA | ||||
Console Port | RJ45 connector, RS232 TX/RX | ||||
Alarm Contact | 2-pin relay output with current carrying capacity of 0.5A@60V | ||||
LED indicators | |
Power | Green On - Power on Green Off - Power off |
System Indicator | Green On - The system starts up successfully Green Off - The system doesn’t start up successfully |
10/100/1000Base-T(X) RJ45 Port Indicator | Yellow for port speed: Yellow On —The port works at 1000Mbps. Yellow Off—The port works at 10M or 100Mbps. Green for port Link/Act: Green On and Blinking—Port LINK UP, data is transmitted. Green On – No Blinking –Port Link Up Green Off - Port Link down |
1000Base-X or 10G Fiber Port Indicator | Green for port Link/Act: Green On and Blinking—Port Link Up, data is transmitted. Green On—Port Link Up Green Off—Port Link Down |
Power | |
Power backup | Optional redundant dual inputs |
Input Voltage | 48VDC |
Full Load | 70W |
Overload Current Protection | Yes |
Reverse Polarity Protection | Yes |
Power Connection | 3-Pin terminal block |
Alarm Conection | 3-Pin terminal block |
Environmental | |
Storage Temperature | -40 to 85ºC (-40 to 185℉) |
Operating Temperature | -40 to 85ºC (-40 to 185℉) |
Operating Humidity | 5% to 95% Non-condensing |
Physical Characteristic | |
Enclosure | Metal housing with IP40 Protection |

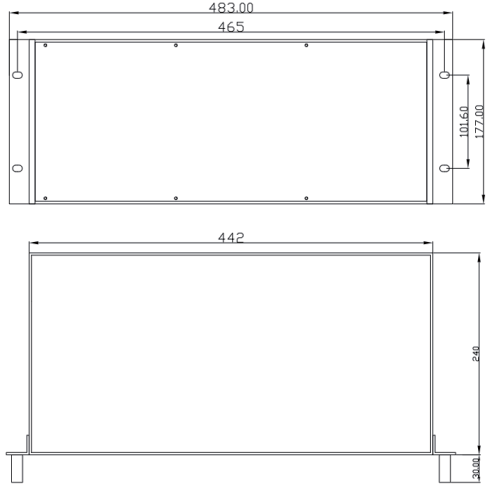

Dimension (W x D x H) | 483×177×244mm |
Weight(kg) | 6.5kg |
Installation | 4U Rack |
Warranty | 5 years |
