HF-IES-EN2008M series
EN2008M series is Layer2+ Managed 8 Fast Ethernet M12 Industrial Ethernet switch which widely used in harsh environment. EN2008M through certification standards of EN50155, comply with the stability requirement of rail transit. EN2008M with independent intellectual property rights of the HF-Ring Ethernet ring protection protocol, used to form a ring network fast self-healing ring network, realize the redundancy backup. EN2008M self-healing time less than 15ms. EN2008M series support DIN-Rail/Panel for optional with sealing structure design, and reach IP67 protection grade. grade.This series widely be used in special requirements of vibration, shock, dust proof and waterproof, electromagnetic interference and other factors detailed targeted in the design in traffic, railway, mining and other industries, to ensure the stable operation of the network. EN2008M uses no fan design, can work under -40℃～+85℃temperature, and has a variety of alternative power supply voltage.
Comply with EN50155 railway industry standard,specifically designed for the application of rail transportation
Support 8 ports M12 100M port
10/100BaseT(X), Full/Half Duplex
MDI/MDI-X Auto-negotiation
Optional functions in support of PSE type, compatible with 8 EEE802.3at PSE Ethernet port
Support port aggregation, port speed, broadcast storm suppression
Support STP, RSTP, IEEE802.3Q VLAN
Support WEB interface and command line configuration management function
To meet the requirements of industrial - 4 level electromagnetic compatibility
Green Industrial Ethernet series, no fan,low power design
Support HF-Ring network protocol, compatible
IP67 Protection Level, Metal
with IEC62439-6, healing time ≤ 15ms
Support IGMP Snooping, GMRP and static multicast
Redundant power input design
Wide working temperature: : -40℃～+85℃
| Physical Port | |
| 100M-TX | 10/100Base-T(X) auto negotiation, M12 interface |
| Alarm port | 4 Pin M12 output |
| CONSOLE port | 8 Pin M12 output |
| Transmission Distance | |
| Twisted pair | 100m(Adopt standard CAT5, CAT5e) |
| Technology | |
| Standards | IEEE802.3i/802.3u/802.3x/802.1p/802.1q/802.1d/802.1w/802.1x,IGMP,GMRP,SNMP |
| Flow control | IEE802.3x Full/Half Duplex, back pressure flow control |
| Transmission | storage-and-forwarder |
| MAC Table Size | 8K |
| Packet Buffer Size | 3Mbit |
| Packet Forwarding Rate | 1.2/2.4/3.6Mpps |
| Switching delay | <5μS |
| Power | |
| Power backup | 220VAC/DC(88~264VAC),Optional redundant dual inputs |
| Input Voltage | 220VAC/DC(88~264VAC,120~300VDC) |
| Full Load | 20W |
| Overload Current Protection | Yes |
| Reverse Polarity Protection | Yes |
| Over current Protection | Yes |
| Connection | 5-Pin M23 interface |
| *PES Power | 48VDC(POE device) |
| Environmental Limit | |
| Storage Temperature | -40 to 85ºC (-40 to 185℉) |
| Operating Temperature | -40 to 85ºC (-40 to 185℉) |
| Operating Humidity | 5% to 95% Non-condensing |
| Physical Characteristic | |
| Enclosure | Metal housing with IP40 Protection |

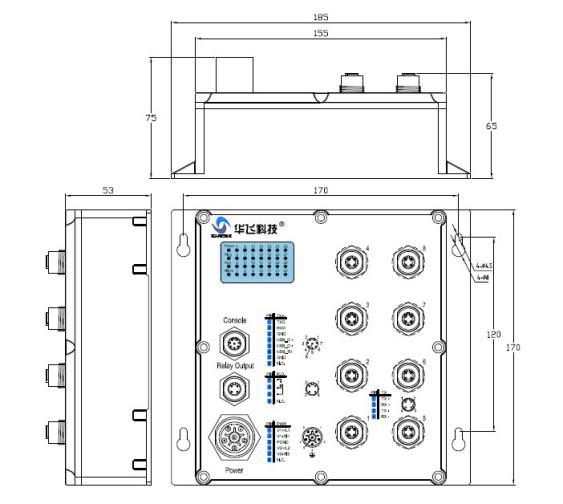

| Dimension (W x D x H) | 185*53*170mm,250*53*170mm,305*538170mm |
| Weight(kg) | 1.2/1.6/2.0kg |
| Installation | Din-Rail mounting, Wall mounting |
| Warranty | 5 years |
| LED indicators | POWER, Ring, Alarm, Run |
| * Connector LED | Link/Act |
| Certification: | |
| * EMI: | FCC Part 15 Subpart B Class A,EN 55022 Class A |
| * EMS: | IEC 61000-4-2(ESD) Level 3 |
| IEC 61000-4-3(RS) exceeds Level 3 | |
| IEC 61000-4-4( EFT) Level 3 | |
| IEC 61000-4-5(Surge) Level 3 | |
| IEC 61000-4-6(CS)Level 2, | |
| IEC 61000-4-8, | |
| IEC 61000-4-11 | |
| IEC 61000-4-16 | |
| * Vibration: | IEC60068-2-6 |
| * Concussion: | IEC60068-2-27 |
| * Depreciation: | IEC60068-2-32 |
| * Railway: | EN50155, EN50121-3-2, EN50121-4(Application certification) |
HF-IES-EN2008M-8TX
HF-IES-EN2008M-8TX-POE
