HF-IES-EN1008 series
HF-IES-EN1008-8TX is unmanaged layer2 industrial switch with 8 fast Ethernet EN50155(M12) interfaces, through certification of EN50155 standard, comply with the stability requirement of rail transit. Support DIN-Rail/Wall mounting, it’s plug and play. Wide working temperature -40℃~+85℃, relative humidity 5~95%(no condensation), equipped with performance of dust/salt fog proof, make it completely suitable for harsh environment.
Comply with EN50155 railway industry standard, specifically designed for the application of rail transportation
Provide 8 M12 100M Ethernet port
Comply with electromagnetic compatibility requirements with industrial 4 grade
10/100M, half/full duplex, MDI/MDI-X auto-negotiation
Green industry series without fan and low-power design
Variety input voltage for optional
Meet the stringent electrical environment and work requirements
Alarm output of power control
IP40 protection grade,metal shell
DIN Rail/Wall mounting
Wide working temperature: -40℃～+85℃
CE、FCC、RoHS certification
Physical Port | ||
100M-TX | 10/100Base-T(X) auto negotiation, M12 interface | |
Transmission Distance | ||
Twisted pair | 100m(Adopt standard CAT5, CAT5e) | |
Technology | ||
Standards | IEEE802.3, IEEE802.3u, IEEE802.3x, IEEE802.3i | |
Flow control | IEE802.3x flow control, back pressure flow control | |
Switch Properties | ||
MAC Table Size | 8K | |
Packet Buffer Size | 1Mbit | |
Packet Forwarding Rate | 1.2Mpps | |
Switching delay | <5μS | |
Interfaces | ||
RJ45 Port | 10/100Base-T(X) auto negotiation | |
Alarm Contact | 2-pin relay output | |
Power | |
Power backup | Optional redundant dual inputs |
Input Voltage | 220VAC/DC(88~264VAC,120~300VDC), optional 24VDC(10~36VDC),
48VDC(18~72VDC),110VDC(72~154VDC) |
Full Load | 6W |
Overload Current Protection | Yes |
Reverse Polarity Protection | Yes |
Connection | 5-Pin M12 interface |
Environmental Limit | |
Storage Temperature | -40 to 85ºC (-40 to 185℉) |
Operating Temperature | -40 to 85ºC (-40 to 185℉) |
Operating Humidity | 5% to 95% Non-condensing |
Physical Characteristic | |
Enclosure | Metal housing with IP40 Protection |

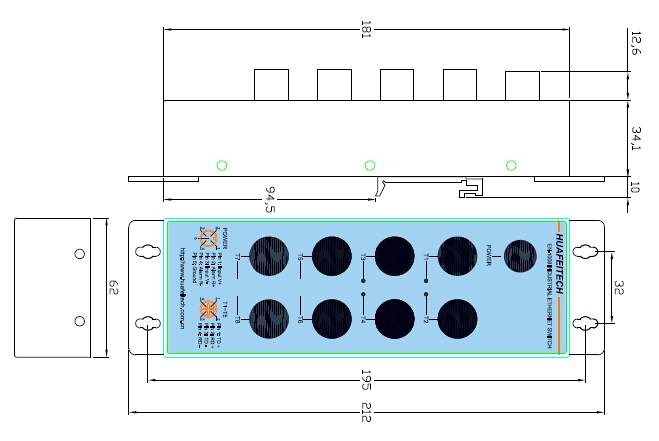

Dimension (W x D x H) | 212×34×62mm |
Weight(kg) | 0.6kg |
Installation | Din-Rail mounting, Wall mounting |
Warranty | 5 years |
HF-IES-EN1008-8TX
